DMF 360 LINEAR
TECHNICAL DATA
Work Area
| Max. X travels | 3,600 mm |
| Max. Y travels | 920 mm |
| Max. Z travels | 820 mm |
Table dimensions
| Max. table load | 5,000 kg |
| Table length | 4,200 mm |
| Table width | 900 mm |
Workpiece dimensions
| Max. workpiece height | 750 mm |
Spindle
| Standard speed | 10,000 rpm |
| Drive power rating (100% DC) | 25 kW(AC) |
| Torque (100% DC) | 200 Nm |
Rapid traverse
| Max. X axis | 80 m/min |
| Max. Y axis | 60 m/min |
| Max. Z axis | 60 m/min |
VTC-300 C-II
MACHINE CHARACTERISTICS:
- Long fixed table design
- Optional table partition available
- Standard 12,000-rpm CAT 40-taper spindle
- 36.000 mmpm rapid traverse rate
- 24-tool (48 optional) storage capacity
- Automatic tool changer
- Maximum table load of 1.500 kgs.
MACHINE SPECIFICATIONS
|
SPECIFICATION |
VALUES |
|
|
Capacity |
Table Right/Left |
78.740 in / 2000 mm |
|
Table Longitudinal |
30.000 in / 760 mm |
|
|
Spindle |
Spindle Taper |
40 |
|
Maximum Speed |
12000 rpm |
|
|
Motor Output (30 minute rating) |
15.0 hp / 11 kw |
|
|
Magazine |
Number of Tools |
24 |
|
Feed Axes |
Travel (X Axis) |
65.35 in / 1660 mm |
|
Travel (Y Axis) |
30.00 in / 760 mm |
|
|
Travel (Z Axis) |
26.00 in / 660 mm |
|
DMU 70
TECHNICAL DATA
Work Area
| Max. X travels | 750 mm |
| Max. Y travels | 600 mm |
| Max. Z travels | 520 mm |
Table dimensions
| Max. table load | 350 kg |
| Table diameter | 800 mm |
Workpiece dimensions
| Max. workpiece height | 560 mm |
Spindle
| Standard speed | 10,000 rpm |
| Max. speed (Option) | 10,000 rpm |
| Drive power rating (100% DC) | 9 kW(AC) |
| Torque (100% DC) | 57 Nm |
Tool magazine
| Capacity | 16 |
| Max. capacity | 16 |
Rapid traverse
| Max. X axis | 24 m/min |
| Max. Y axis | 24 m/min |
| Max. Z axis | 24 m/min |
DMC 1035V ECOLINE
TECHNICAL DATA
Work Area
| Max. X travels | 1,035 mm |
| Max. Y travels | 560 mm |
| Max. Z travels | 510 mm |
Table dimensions
| Max. table load | 1,000 kg |
| Table length | 1,200 mm |
| Table width | 560 mm |
Spindle
| Standard speed | 12,000 rpm |
| Max. speed (Option) | 12,000 rpm |
| Drive power rating (100% DC) | 9 kW(AC) |
| Torque (100% DC) | 54 Nm |
Tool magazine
| Capacity | 20 |
| Max. capacity | 20 |
Rapid traverse
| Max. X axis | 30 m/min |
| Max. Y axis | 30 m/min |
| Max. Z axis | 30 m/min |

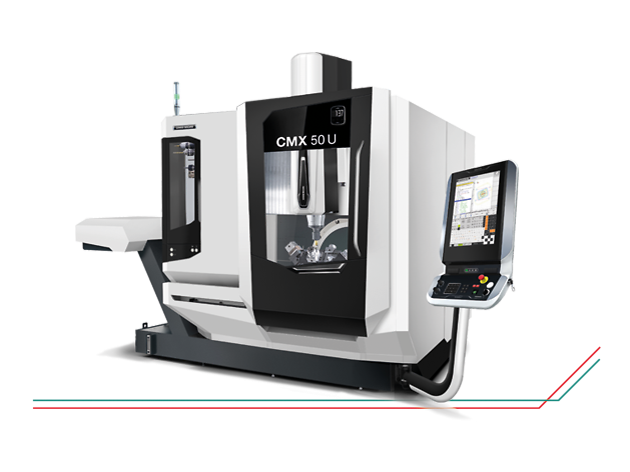

CMX 50 U
Work Area
|
Max. X travels |
500 mm |
|
Max. Y travels |
450 mm |
|
Max. Z travels |
400 mm |
Table dimensions
|
Max. table load |
200 kg |
|
Table diameter |
630 mm |
Workpiece dimensions
|
Max. worpiece height |
445 mm |
Spindle
|
Standard speed |
12,000 rpm |
|
Max. speed (Option) |
12,000 rpm |
|
Drive power rating (100% DC) |
9 kW (AC) |
|
Torque (100% DC) |
57 Nm |
Tool magazine
|
Capacity |
30 |
|
Max. capacity |
30 |
Rapid traverse
|
Max. X axis |
30 m/min |
|
Max. Y axis |
30 m/min |
|
Max. Z axis |
30 m/min |

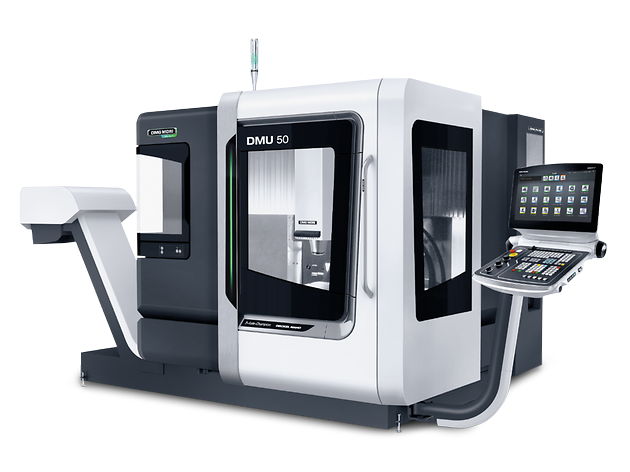

DMU 50 2nd Generation
|
Max. X-Axis |
500 mm |
|
Max. Y-Axis |
450 mm |
|
Max. Z-Axis |
400 mm |
|
Max. workpiece diameter |
630 mm |
|
Max. workpiece height |
500 mm |
|
Max. workpiece weight |
300 kg |

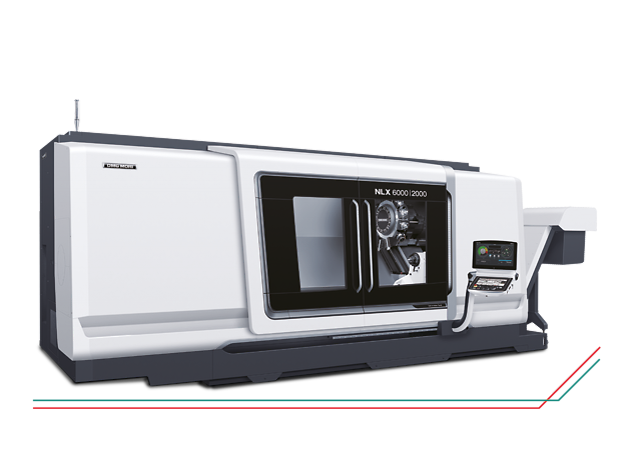

NLX6000/2000
Work Area
|
Max. swing diameter |
1,360 mm |
|
Max. turning diameter |
920 mm |
|
Max. work piece length with a tailstock (can be machined) |
2,000 mm |
|
Max. work piece length with a tailstock (can be machined Type 2000) |
2,000 mm |
|
Max. chuck size |
610 mm |
Main spindle
|
Max spindle motor speed |
1,000 rpm |
|
Drive power rating (100% DC) |
55 kW (AC) |
|
Torque (100% DC) |
9,875 Nm |
|
Max. bar capacity diameter |
116 mm |
Turret (standard)
|
Number of driven tools / Max. speed |
12 / 10000 n/rpm |
Turret slide
|
Rapid traverse rate X- / Y- / Z-axis |
20/10/24 m/min |
Weight
|
Machine weight |
20,000 kg |
NLX 2500/1250
Work Area
| Max. swing diameter | 920 mm |
| Max. turning diameter | 366 mm |
| Max. work piece length with a tailstock (can be machined Type 1250) | 1,255 mm |
| Max. chuck size | 254 mm |
Main spindle
| Max spindle motor speed | 4,000 rpm |
| Drive power rating (100% DC) | 22 kW (AC) |
| Torque (100% DC) | 862 Nm |
| Max. bar capacity diameter | 102 mm |
Counter spindle (Option)
| Max spindle motor speed | 6,000 rpm |
Turret (standard)
| Number of driven tools / Max. speed | 12 / 10000 rpm |
Turret slide
| Rapid traverse rate X- / Y- / Z-axis | 30/10/30 m/min |
Weight
| Machine weight | 7,760 kg |
NLX 2500/700 SY
Work Area
| Max. swing diameter | 920 mm |
| Max. turning diameter | 366 mm |
| Max. work piece length with a tailstock (can be machined Type 700) | 728 mm |
| Max. chuck size | 254 mm |
Main spindle
| Max spindle motor speed | 4,000 rpm |
| Drive power rating (100% DC) | 22 kW (AC) |
| Torque (100% DC) | 862 Nm |
| Max. bar capacity diameter | 102 mm |
Counter spindle (Option)
| Max spindle motor speed | 6,000 rpm |
Turret (standard)
| Number of driven tools / Max. speed | 12 / 10000 rpm |
Turret slide
| Rapid traverse rate X- / Y- / Z-axis | 30/10/30 m/min |
Weight
| Machine weight | 7,760 kg |
NLX 2500/700 MC
Work Area
| Max. swing diameter | 920 mm |
| Max. turning diameter | 366 mm |
| Max. work piece length with a tailstock (can be machined Type 700) | 728 mm |
| Max. chuck size | 254 mm |
Main spindle
| Max spindle motor speed | 4,000 rpm |
| Drive power rating (100% DC) | 22 kW (AC) |
| Torque (100% DC) | 862 Nm |
| Max. bar capacity diameter | 102 mm |
Counter spindle (Option)
| Max spindle motor speed | 6,000 rpm |
Turret (standard)
| Number of driven tools / Max. speed | 12 / 10000 rpm |
Turret slide
| Rapid traverse rate X- / Y- / Z-axis | 30/10/30 m/min |
Weight
| Machine weight | 7,760 kg |
SPRINT 32-8
Work Area
|
Max. turning diameter |
32 mm |
|
Max. work piece length |
600 mm |
|
Max. bar capacity diameter |
32 mm |
|
SWISSTYPEkit for long turning |
✔ |
Axes
|
Max. number of axes |
8 |
|
Max. number of linear axes |
6 |
|
Max. number of Y-axes |
2 |
|
Max number of C-axes |
2 |
Main spindle
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
8,500 rpm |
|
Drive power rating (100% DC) |
5.5 kW (AC) |
|
Torque (100% DC) |
40 Nm |
Counter Spindle
|
Counter spindle available |
✔ |
|
Integrated motor spindle (ISM) with a C-axis (0,001°) |
8,500 rpm |
|
Drive power rating (100% DC) |
2.2 kW (AC) |
|
Torque (100% DC) |
14 Nm |
Tool carrier
|
Max. number of tool carriers |
3 |
|
Max. number of tool pockets |
28 |
|
Driven Tools / Max. tool speed |
10 / 6000 rpm |
|
Drive power rating (100% DC) |
1 kW (AC) |
|
Torque (100% DC) |
3 Nm |
Machine Size
|
Machine weight |
3,550 kg |
|
Floor Space incl chip conveyor, w/o inner coolant unit |
2.8 sqm |
CTX420 LINEAR
TECHNICAL DATA
| Control system Siemens : | Sinumerik 840 D |
| Turn table diameter : | 680 mm |
| Turning length : | 600 mm |
| Spindle bore : | 79 mm |
| Number of tool positions (driven) : | 12 |
| Travel X-axis : | 260 mm |
| Travel Z-axis : | 635 mm |
| Spindle speed : | 5000 rpm/td> |
| Main motor power : | 25 kW |
| Machine weight : | 6000 kg |
NEF 600
Work Area
| Max. swing diameter | 600 mm |
| Max. turning diameter | 600 mm |
| Max. work piece length with a tailstock (can be machined) | 1,190 mm |
| Max. chuck size | 315 mm |
Main spindle
| Max spindle motor speed | 3,500 rpm |
| Drive power rating (100% DC) | 28 kW(AC) |
| Torque (100% DC) | 590 Nm |
| Spindle diameter in the front bearing | 160 mm |
| Max. bar capacity diameter | 92 mm |
Turret (standard)
| Tool holder according to VDI / DIN 69880 | 12 |
| Number of driven tools / Max. speed | 12 / 4000 rpm |
| Drive power rating (100% DC) | 2 kW(AC) |
| Torque (100% DC) | 28 Nm |
Turret slide
| Rapid traverse rate X- / Y- / Z-axis | 30/ - /30 m/min |
Weight
| Machine weight | 5,500 kg |
MYNX 500
Daewoo Mynx 500
| Min - Max Height Under Spindle : | 200 - 774mm |
| Traverses XYZ: | 1020 x 510 x 510mm |
| Spindle Speed: | 8000rpm |
| Spindle Motor Power: | 11/15kW |
| Control: | FANUC 21iM |
| Tool Change Capacity: | 24 Station |
| Tool Size: | BT40 |
| Table Size: | 1200 x 500mm |
| A Axis: | 9 kW(AC) |
| A Axis Unit: | Nikken with 12" chuck |
| Serial Number: | AV5E0881 |
| Description: | Coolant, 4th Axis Rotary Table, Interlocked guards, Low Volt Light, Manuals, Remote Hand Wheel, Swarf Conveyor |
TESA MIKRO HITE 3D
TECHNICAL DATA
| Three (3) measurement function capacity: | Manual Micro movement through crank shaft Νon-contact camera use (with camera upgrade option) |
| Net measurements dimensions | X: 460mm Y: 510mm Z: 420mm |
| Mobile bridge moving in 22 air bearings on three axes | |
| Readability: | 0.001mm |
| Measuring Accuracy: | 0,003+3*L/1000 mm (L=m) |
| Repeatability: | 3μm |
| The machine comes with hardware (touch screen with built-in hardware, controller) & software–REFLEX | |
| Maximum weight of object to be measured: | 227 kg |
| Maximum object dimensions to be measured at least: | X: 600 mm Y: 750 mm Z: 430 mm |
HEXAGON ROMER ABSOLUTE ARM 75 SERIES
TECHNICAL DATA
| Measuring Range | 2.0 m / 6.6 ft. |
| Point Repeatability | 0.016 mm / 0.0006 in. |
| Volumetric Accuracy | ± 0.023 mm / 0.0009 in. |
| Arm Weights | 7.7 kg / 17.0 lbs |
MITUTOYO Surftest SJ-410 Series 178-Portable Surface
|
Measuring range: 800μm |
|
Resolution: 0.000125μm (at 8μm range) |
|
Drive unit |

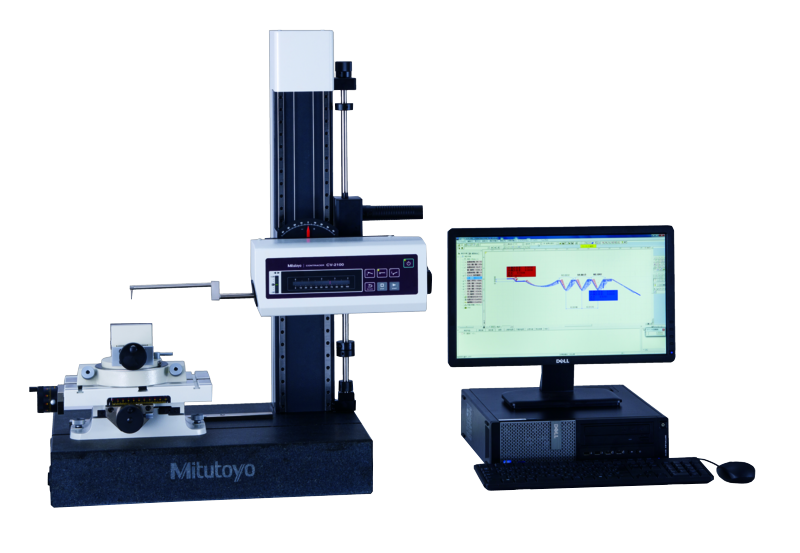

MITUTOYO Contracer CV-2100M4 [mm]
|
Measuring speed: |
0.02 - 5 mm/s |
|
Measuring range: |
Z1 = 50 mm |
|
Drive speed: |
X = 0 - 20 mm/s |
|
Accuracy: |
X = (2,5 + 0,02L) µm the horizontal position (mm)] |
|
Traverse straightness: |
2.5 µm / 100 mm |
|
Column type: |
M4: 350 mm |

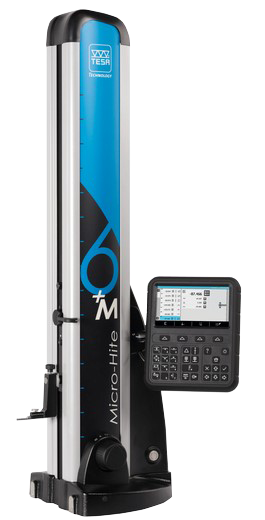

MICRO-HITE+M
|
Measuring force |
1,6 ± 0,25 N |
|
Units |
mm / in |
|
Standard |
Factory standard |
|
Resolution |
0,0001 / 0,001 / 0,01 mm 0.00001 / 0.0001 / 0.001 in |
|
Zero |
Fixed |
|
Coefficient of linear expansion |
11,5 x 10-6 K-1 |
|
Material |
Cast iron base and frame |
|
Weights |
Model 350: 33 kg Model 600: 37 kg Model 900: 45 kg |
